Stage 2
"In Pieces"

This is the result of drilling out some 70 odd rivets, essentially taking the case down to its component ingredients for the internal painting.  Also, the windows have been cut by a facility with a Laser Cutter, there is a link to their homepage at the bottom of this one.  The laser cutting was very clean, requiring minimal sanding... a lot better than I could have done with my Dremel.



(Click on Pictures for larger version)

Laser Cutting Complete

Laser Cuts Completed

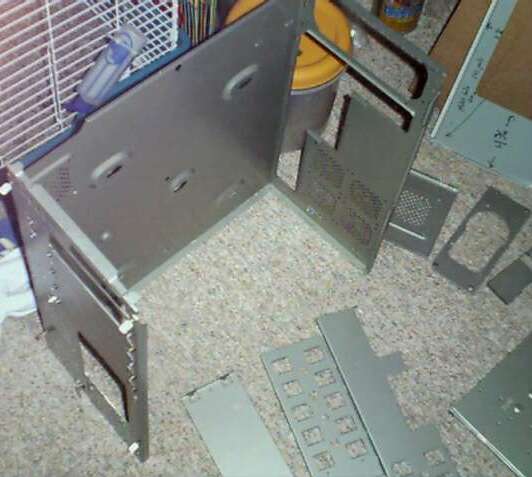

Main Portion, that's all.

Main portion, with nothing attached

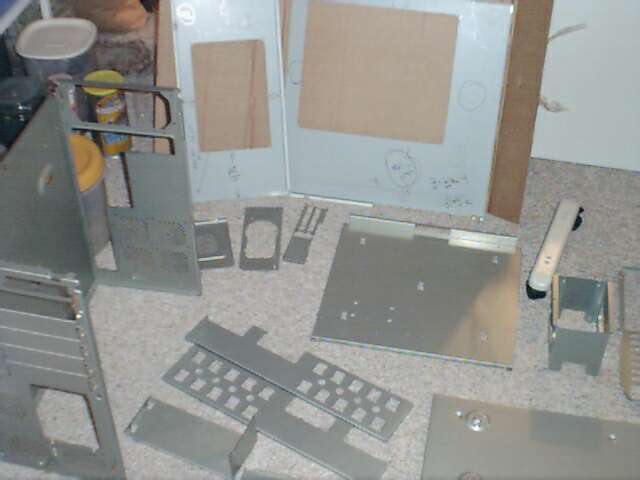

In Pieces

All in Pieces

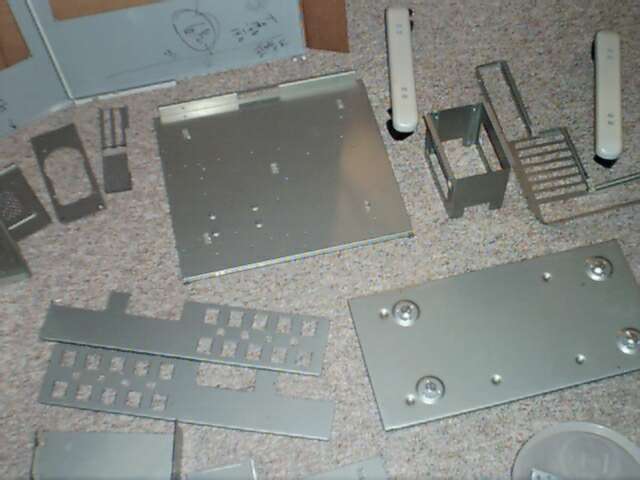

In Pieces - Again

All in Pieces - Another View

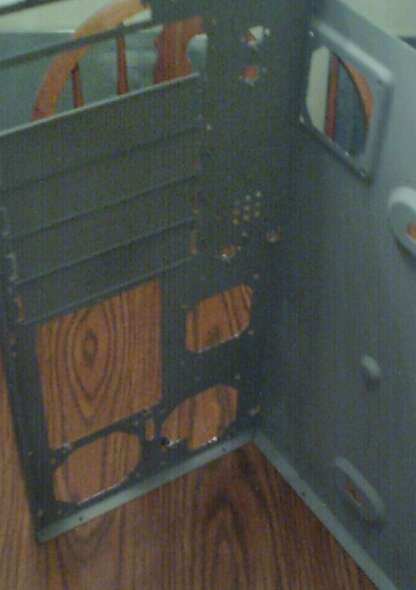

Blowholes Cut

Also, metal grilles for fan placement cut out for improved airflow (ala Dremel)

Link to Laser Cutting facility -

Laser Cutting Services - Indianapolis, Indiana
